Durable steel construction, purpose-built for powering single-acting cylinders and hydraulic tools. These two-speed pumps are used with single-acting cylinders. The two-speed feature provides high oil volume for fast cylinder piston approach to the work, then the pump automatically shifts to the high pressure stage. This reduces the number of pump handle strokes required.


 SPECIFICATIONS
Model P19 P19L P59 P59L P59F P157 P159 P300 P460
Max. Flow (l/min) 0.32 0.47 0.73 1.13 0.73 2.24 2.24 5.07 7.53
Pump Type Manual
Reservoir Capacity (L) 0.38 0.49 0.91 0.91 0.91 2.46 2.46 5.68 9.46
Operating Pressure 689 Bar 689 Bar 689 Bar 689 Bar 689 Bar 689 Bar 689 Bar 689 Bar 689 Bar
Cylinder Compatibility Single-Acting
Weight 3 kg 2.3 kg 7.8 kg 4 kg 6.4 kg 12.1 kg 11.9 kg 25.1 kg 25 kg
Part No.: P19
Part No.: P19L
Part No.: P59
Part No.: P59L
Part No.: P59F
Part No.: P157
Part No.: P159
Part No.: P300
Part No.: P460

SIMILAR PRODUCTS

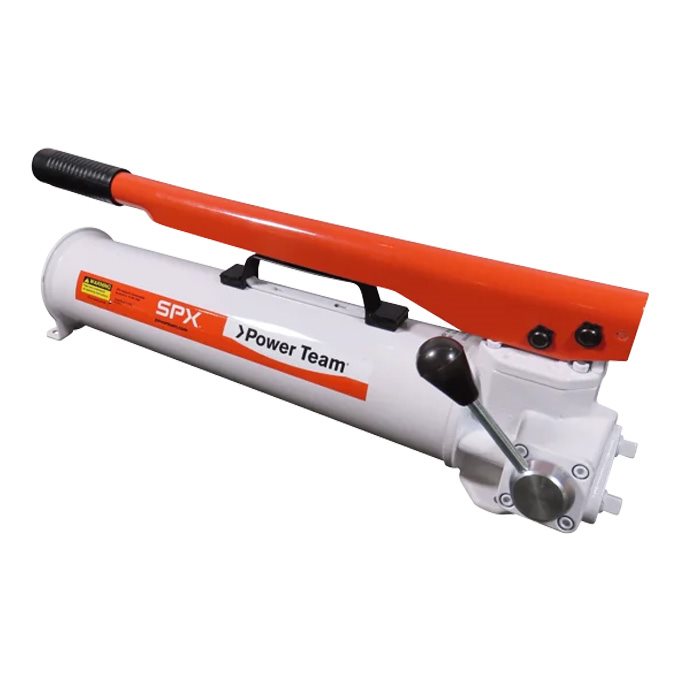

Manually-Operated Hydraulic Two-Speed, Double-Acting Pumps
